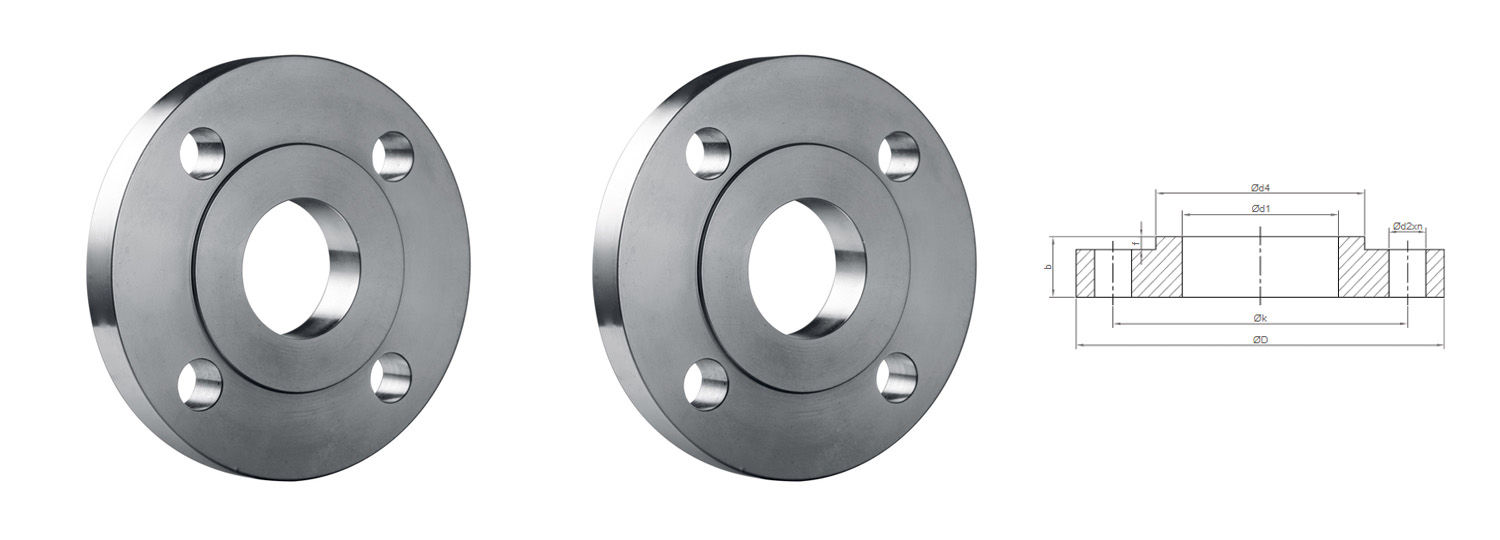

Paslanmaz Düz Flanşlar (PN 6) Kapak 01

01

Stainless Steel Plane
Welding Flanges (PN 6)

Available Stainless Flat Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

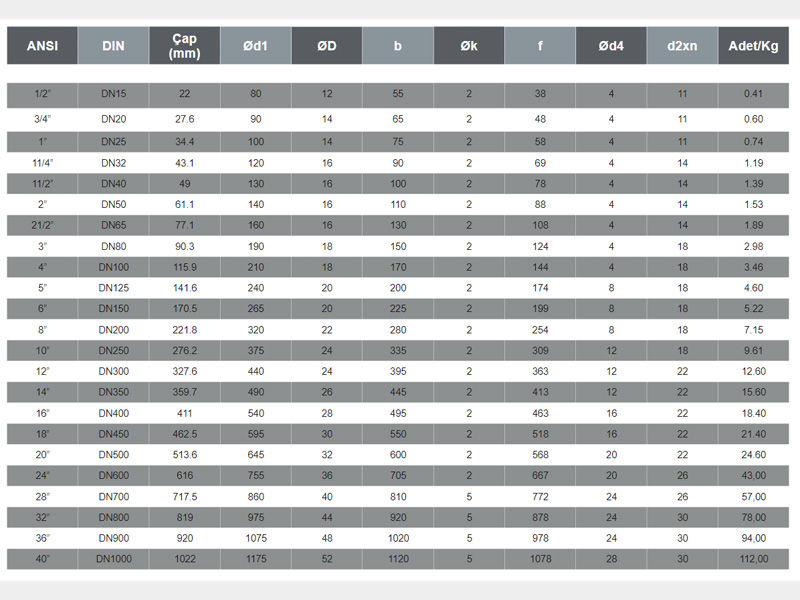

Paslanmaz Düz Flanşlar (PN 6) 02a
Paslanmaz Düz Flanşlar (PN 10) Kapak 01

02

Stainless Steel Plane
Welding Flanges (PN 10)

Available Stainless Flat Flange Grades:
EN 1092-1 TYPE 01

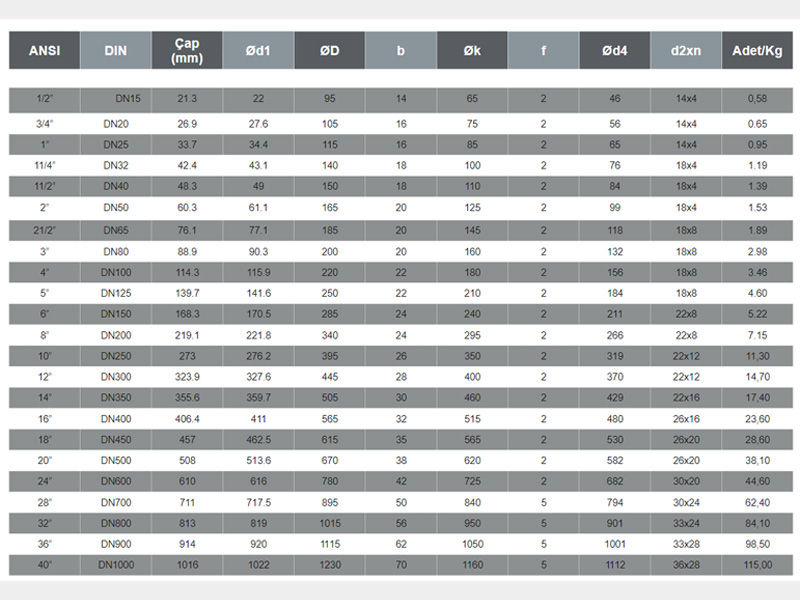

Paslanmaz Düz Flanşlar (PN 10) 02a

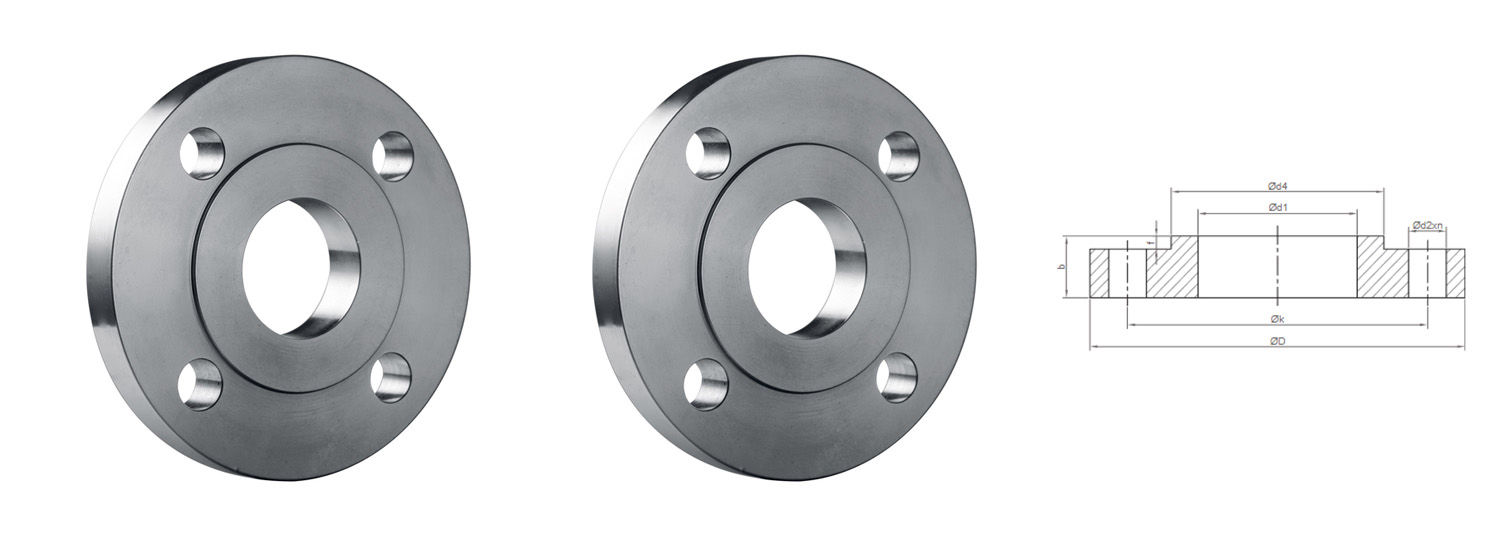

Paslanmaz Düz Flanşlar (PN 16) Kapak 01

03

Stainless Steel Plane
Welding Flanges (PN 16)

Available Stainless Flat Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

Paslanmaz Düz Flanşlar (PN 16) 02a

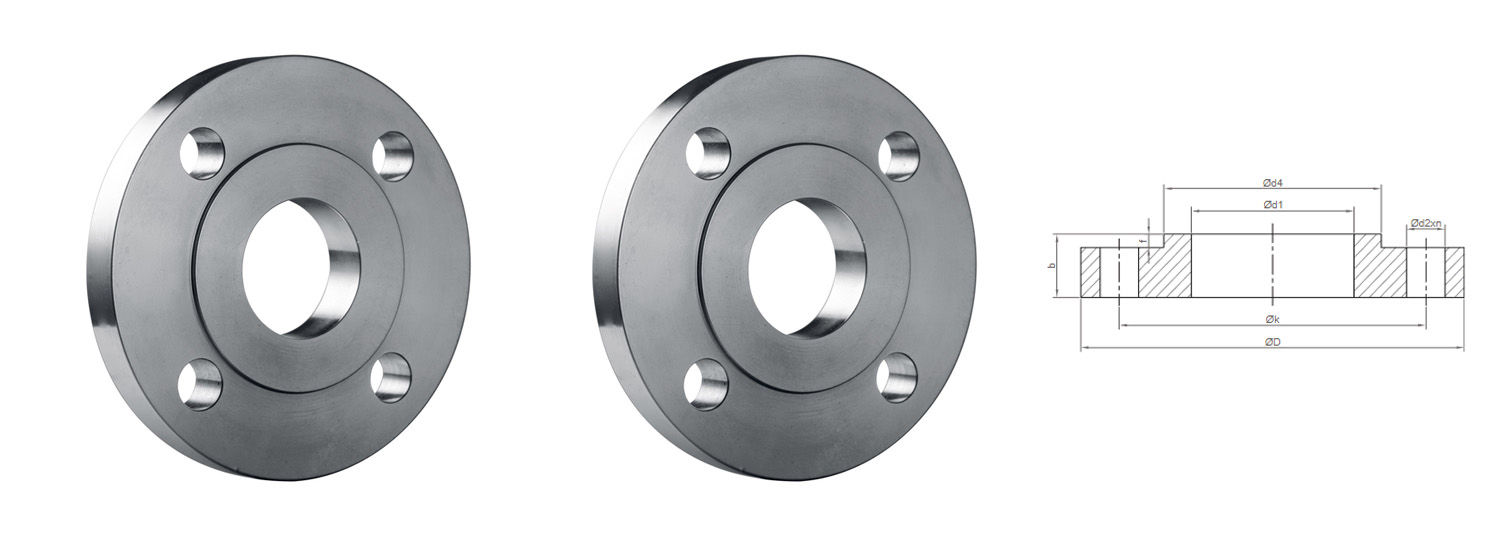

Paslanmaz Düz Flanşlar (PN 25) Kapak 01

04

Stainless Steel Plane
Welding Flanges (PN 25)

Available Stainless Flat Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

Paslanmaz Düz Flanşlar (PN 25) 02a

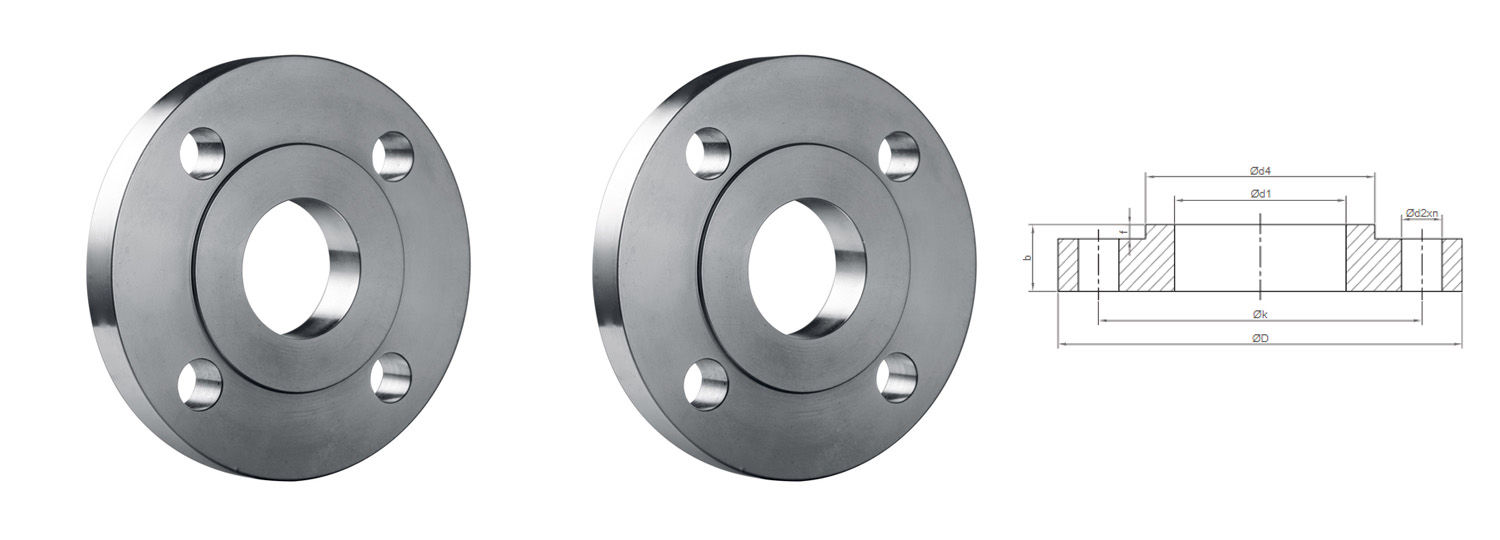

Paslanmaz Düz Flanşlar (PN 40) Kapak 01

05

Stainless Steel Plane
Welding Flanges (PN 40)

Available Stainless Flat Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

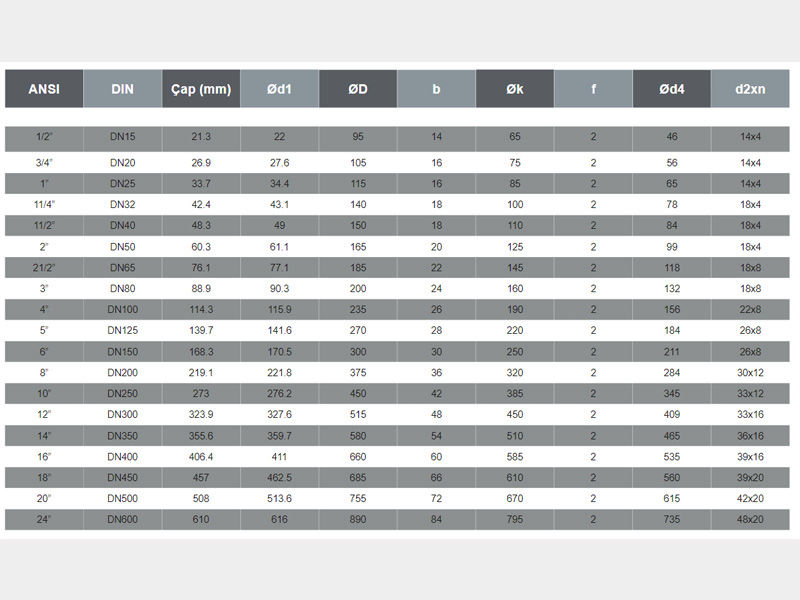

Paslanmaz Düz Flanşlar (PN 40) 02a
Paslanmaz Kaynak Boyunlu Flanşlar (PN 10) Kapak 01

06

Stainless Steel Welding
Neck Flanges (PN 10)

Available Stainless Weld Neck Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

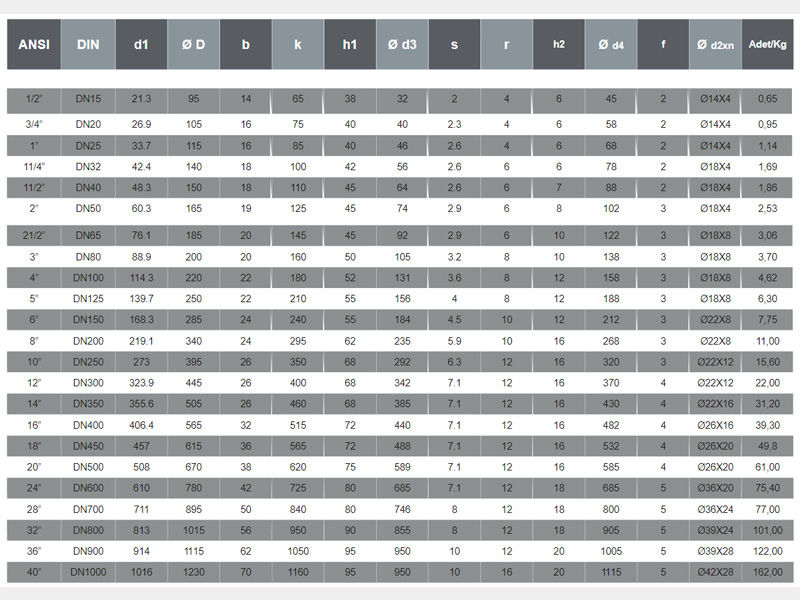

Paslanmaz Kaynak Boyunlu Flanşlar (PN 10) 02a

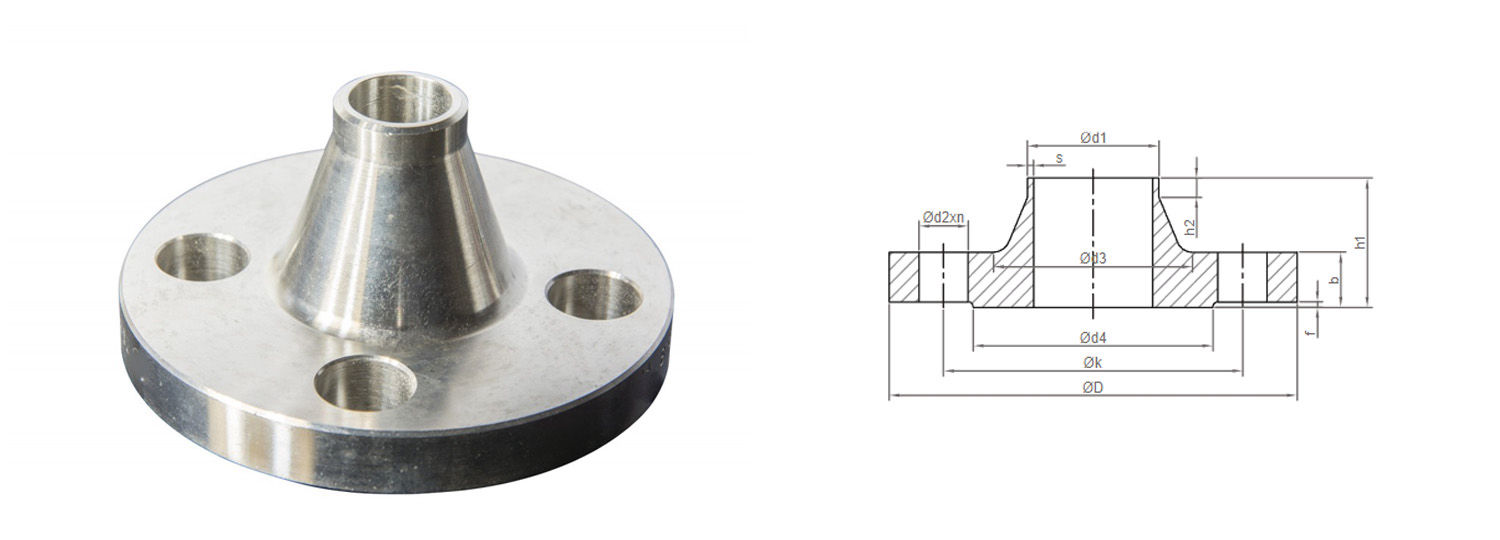

Paslanmaz Kaynak Boyunlu Flanşlar (PN 16) Kapak 01

07

Stainless Steel Welding
Neck Flanges (PN 16)

Available Stainless Weld Neck Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

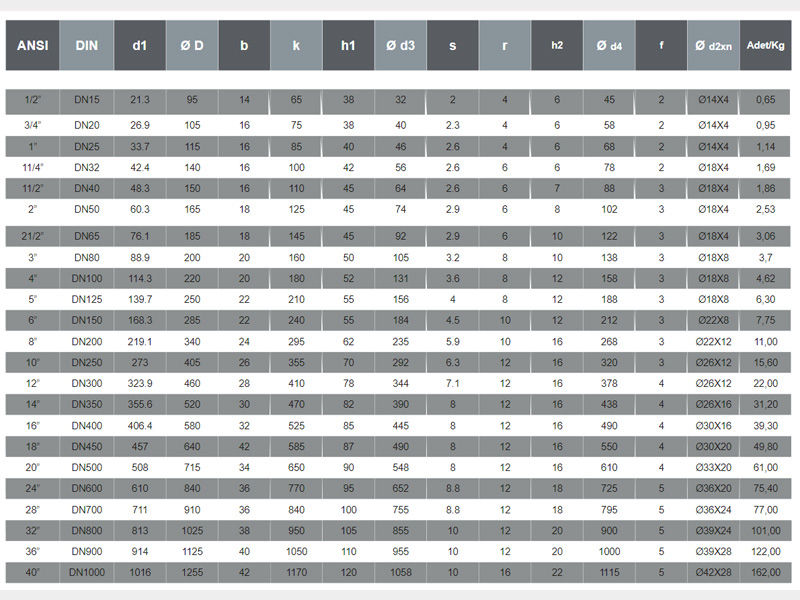

Paslanmaz Kaynak Boyunlu Flanşlar (PN 16) 02a

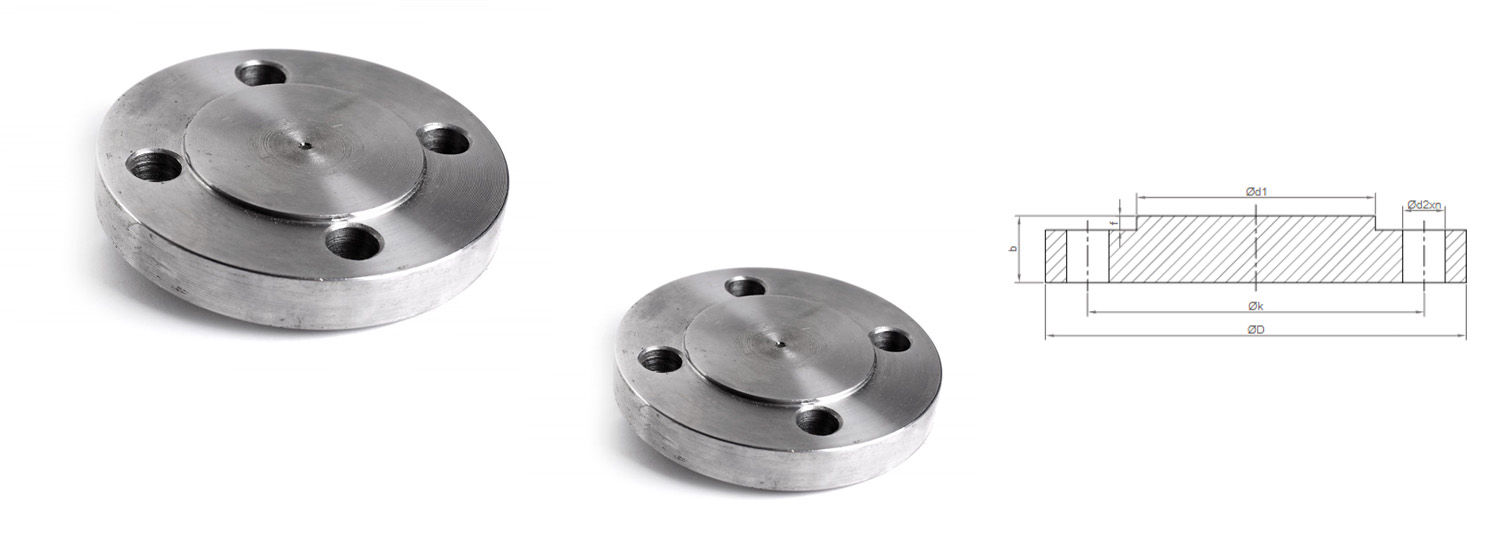

Paslanmaz Kör Flanşlar (PN 10) Kapak 01

08

Stainless Steel Blind
Flanges (PN 10)

Available Stainless Blind Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

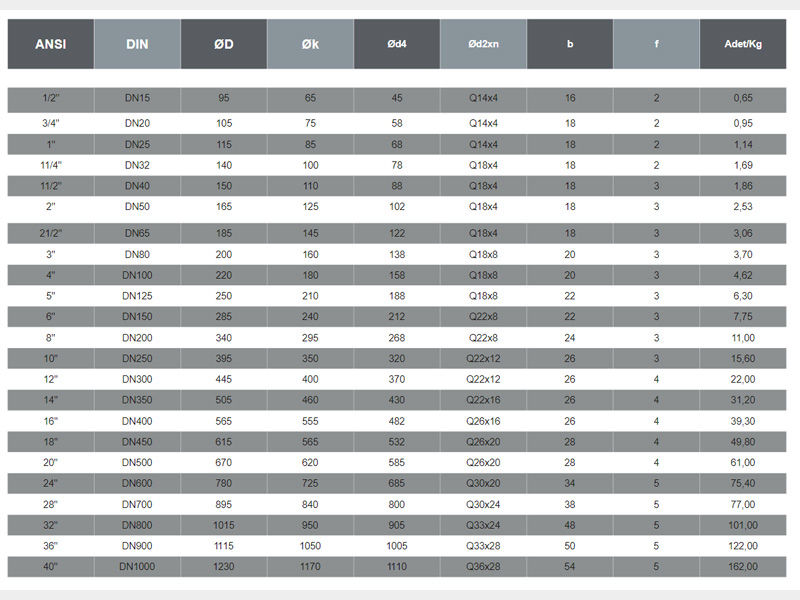

Paslanmaz Kör Flanşlar (PN 10) 02a
Paslanmaz Kör Flanşlar (PN 16) Kapak 01

09

Stainless Steel Blind
Flanges (PN 16)

Available Stainless Blind Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

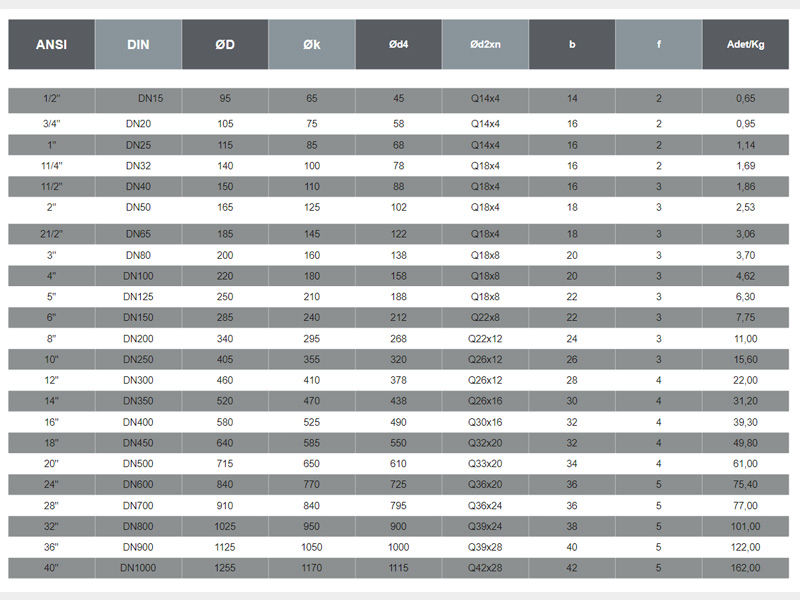

Paslanmaz Kör Flanşlar (PN 16) 02a
Paslanmaz 150Lb Slip-On Flanşlar Kapak 01

10

Stainless Steel 150Lb
Slip-On Flanges

Available Stainless 150Lb Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

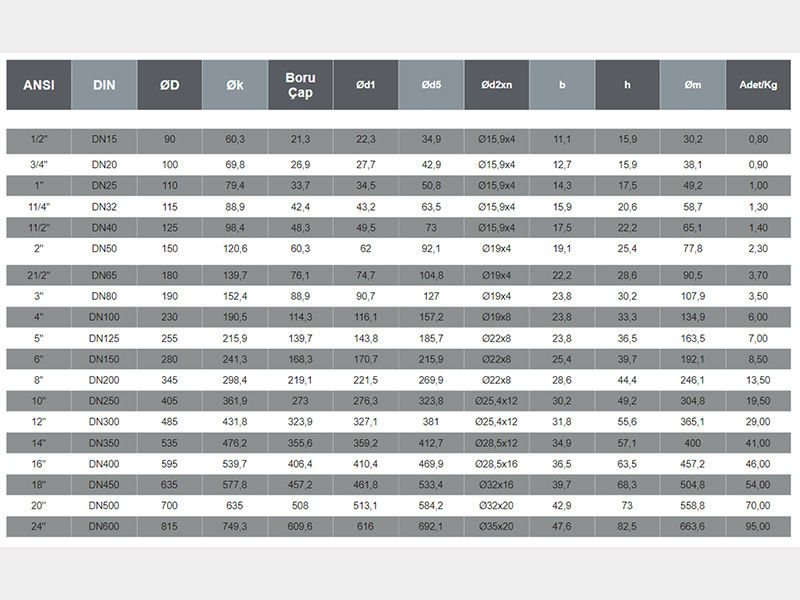

Paslanmaz 150Lb Slip-On Flanşlar 02a

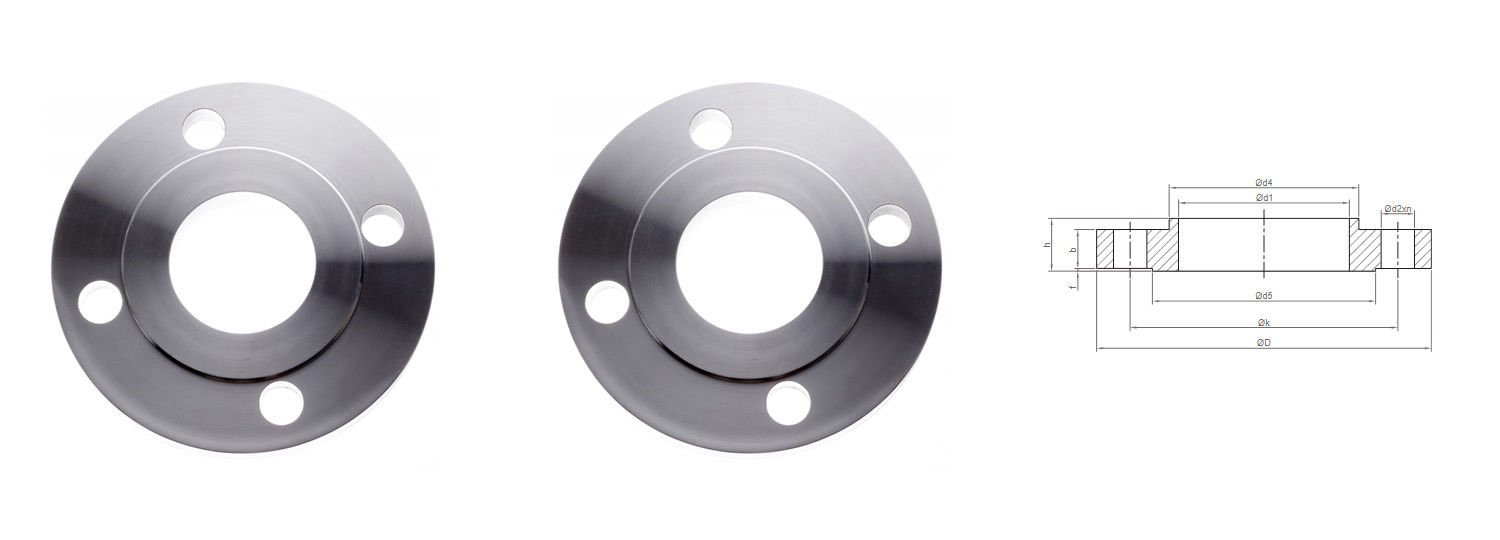

Paslanmaz 300Lb Slip-On Flanşlar Kapak 01

11

Stainless Steel 300Lb
Slip-On Flanges

Available Stainless 300Lb Flange Grades:
304, 304L, 310S, 316, 316L, 316Tİ, 321, 1.4462

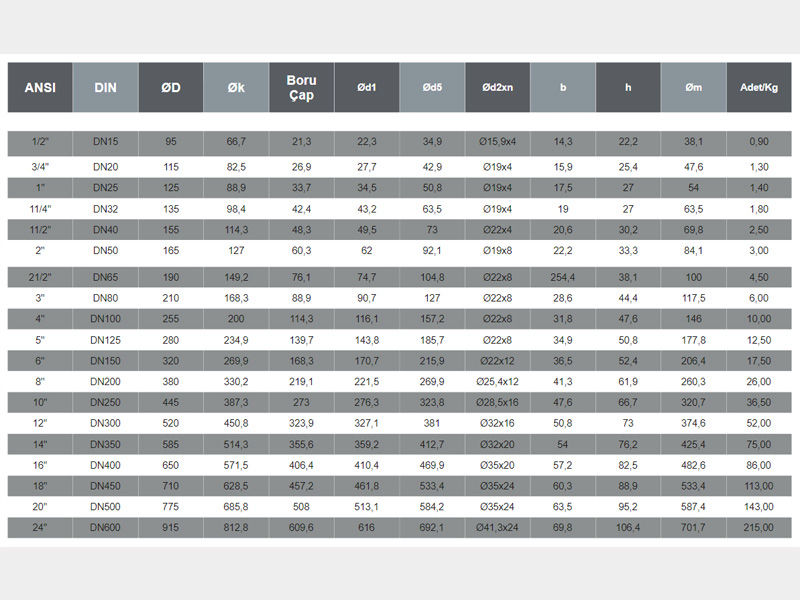

Paslanmaz 300Lb Slip-On Flanşlar 02a
